1.Introduction to Enhanced Roller Mill
2.Working Principle of Enhanced Roller Mill
3.Product Parameters and Models
Capacity:1~35 t/h
Max feeding size:35 mm
Output powder size:80~500 mesh
Range of application: quartz, feldspar, barite, calcite carbonate, limestone, talc, ceramic,iron ore, carborundum, bauxite, rock phosphate, coal and other materials
Clirik reinforced roller mill is a rough material processing grinding mill, suitable for processing Mohs hardness less than 6, humidity less than 6 all kinds of non-flammable and non-explosive mineral materials, widely used in metallurgy, construction, chemical industry, mining, highway construction and other fields.
The particle size of the finished powder can be adjusted between 50 and 325 mesh (315-45 microns). Examples of processed materials include quartz, feldspar, barite, calcite carbonate, limestone, talc, ceramics, iron ore, silicon carbide, bauxite, phosphate rock, coal and other materials, a total of about 400 kinds of materials.
The standard configuration of the enhanced roller mill consists of main unit, reducer, powder classifier, cyclone percolator, dustcleaner, blower, electrical cabinet and pipes. The optional accessories include a crusher, bucket elevator, feeder.

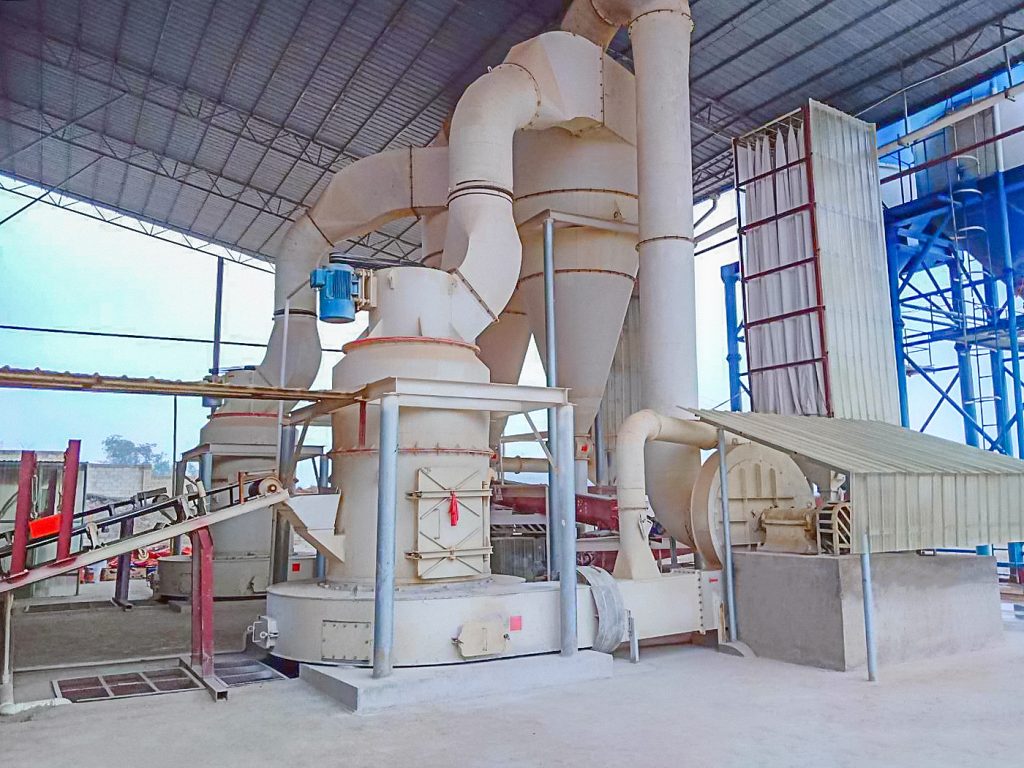

Big materials are crushed by jaw crusher to the required particle sizes, and carried by bucket elevator to the storage hopper, and are fed evenly and continuously by vibrating feeder into the main unit for grinding. The grinded powder is carried by the airflow from the blower to the classifier to be classified, the particles which meet the fineness enter cyclone collector through pipe, are separated and collected there. They are discharged at the discharging valve to become finished products; the airflow is sucked to the blower by a return pipe on the top of a cyclone collector. the whole airflow system is a sealed circulation and is circulated under positive and negative air pressure.
| Model | Roller | Ring | Main Shaft Speed (r/min) | Feeding Size(mm) | Finished size(mesh) | Motor (KW) | Capacity (t/h) | ||
|---|---|---|---|---|---|---|---|---|---|
| Quantity (piece) | Size (mm) | External Dia(mm) | Height (mm) | ||||||
| CLRM9720 | 3~4 | 320*200 | 1077 | 200 | 145 | ＜20 | 80~500 | 45*15*37 | 1~7 |
| CLRM1280 | 3 | 370*240 | 1280 | 240 | 125 | ＜20 | 80~400 | 75*15*55 | 2~12 |
| CLRM1300 | 4 | 410*280 | 1390 | 280 | 112 | ＜20 | 80~400 | 110*22*90 | 3~15 |
| CLRM1620 | 4 | 450*300 | 1620 | 300 | 102 | ＜20 | 80~400 | 160*30*132 | 5~20 |
| CLRM1700A | 4 | 510*300 | 1700 | 300 | 102 | ＜30 | 80~325 | 185*37*160 | 6~25 |
| CLRM1720 | 4 | 510*300 | 1850 | 300 | 92 | ＜35 | 80~325 | 250*45*185 | 6~25 |
| CLRM1900A | 4 | 600*300 | 1900 | 300 | 92 | ＜35 | 80~325 | 250*454*220 | 8~32 |
| CLRM2150 | 4 | 600*300 | 2150 | 300 | 85 | ＜35 | 80~325 | 315*45*280 | 12~35 |
Clirik is a professional manufacturer of mining machinery and equipment, the production of machinery and equipment in the world are very popular, if you are interested in our equipment, please contact us through the contact information on the page, we also have professional engineering and technical personnel for you to customize machinery and equipment, to meet your requirements, to create suitable for your use of equipment, welcome your call!
